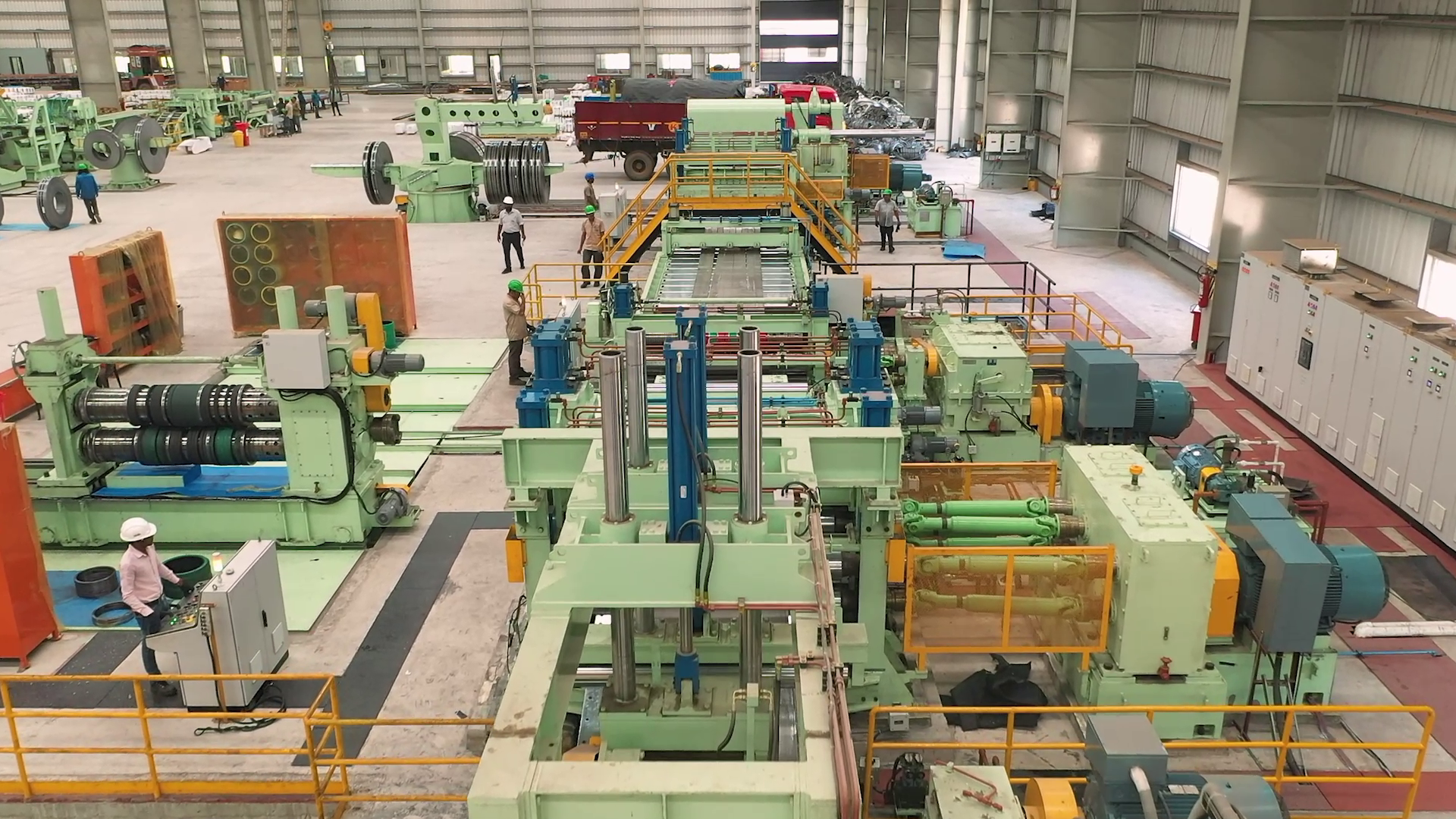

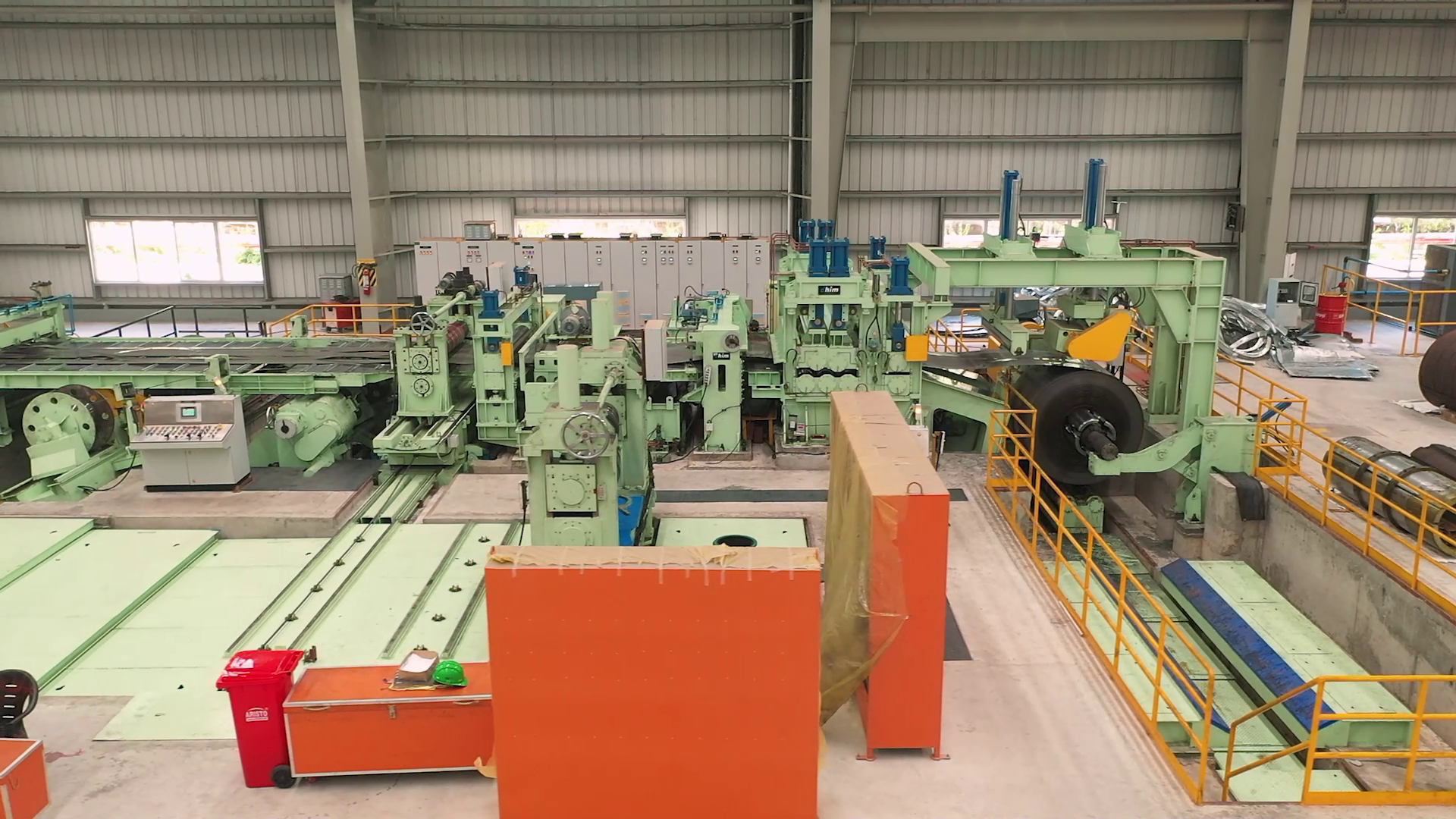

Specifications
Make :DHIM, South Korea
Material: HR/HRPO
Material Strength (Tensile):750 MPa max
Input Width : 2000 mm Max
Input Thickness :1.2 – 12 mm
Output Coil width : 50 mm Min
Line Speed :120 m/min Max
Production Capacity :1,40,000 tons per year
Edge Burr
| Thickness range (mm) | Height of edge Burr |
|---|---|
| 1.2 – 5.5 | Max. 3 % of strip thickness |
| 6.0 – 12.0 | Max. 2 % of strip thickness |
Camber
| Width | Camber |
|---|---|
| 200 – 630 mm | 2 mm per length of 2,000 mm |
| Over 630 mm | 1 mm per length of 2,000 mm |
Width Tolerance
| Thickness | Under 200 - 400 | 400 ~ 600 | Over 600 |
|---|---|---|---|
| 1.2 – 4.5 | ± 0.20 | ± 0.25 | ± 0.30 |
| 4.5 - 6.5 | ± 0.20 | ± 0.25 | ± 0.35 |
| 6.5 - 9.0 | ± 0.20 | ± 0.30 | ± 0.35 |
| 9.0 – 12.0 | ± 0.25 | ± 0.25 | ± 0.35 |
Unique features
This is a unique facility in this part of the country, set up specifically to cater customers with a wide product range
